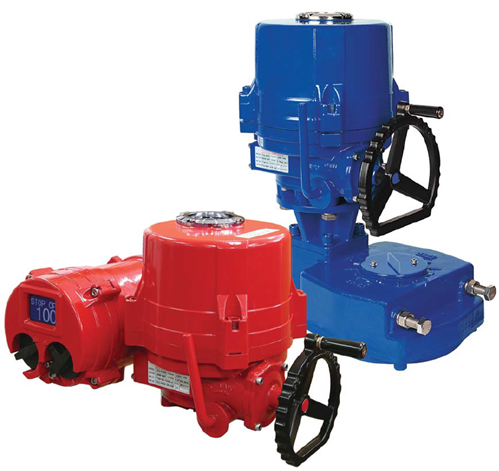

ITQ 0100 – 9000

– Compact and robust construction, light weight providing high output torque (Max 9000Nm).

– Wide range of torque variation (From min 100Nm to max 9000Nm).

– Hard anodized aluminum housing inside and outside with external powder coated against severe industrial environment.

– Enclosure using radial seals & O-rings that provide protection to waterproof IP67 (Nema 4 & 6) and optional watertight IP68

– Mounting base according to ISO5211 standard.

– Removable drive bushing for easy machining and mounting.

– Self-locking provided by double worm gearing (no brake required).

– Auto-declutching manual override handwheel with padlockable auto / manual switchable lever.

– Reliable Mechanical Torque sensing system providing safe operation in overload condition.

– Large size window and indicator provides better position indication from a distance.

– Various Local position control options providing easy commissioning and operation in field.

– Digitalized control component.
