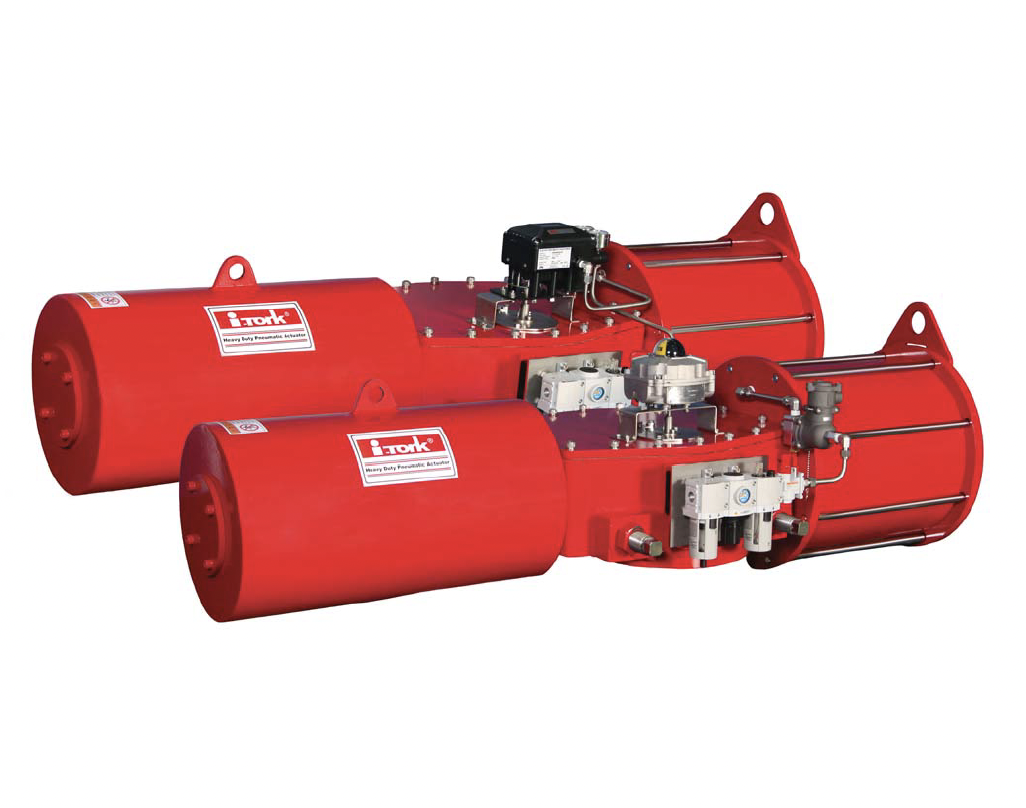

Heavy Duty Pneumatic Actuator
The IS & IC series of Heavy Duty scotch yoke actuators are designed to suit a wide range of valves and damper applications and offer a wide range of torques to enable operation of ball, butterfly, plug valves and dampers or any device that requires a quarter turn operation for on-off or modulating service.
Actuator Type:
Single & Double Acting
Suitable For:
For Quarter (90°) Turn Valve, 2 Way Valve, 3 Way Valve, 4 Way Valve, Damper.
Actuator torque from 1,418Nm to 112,228Nm & Above upon request.
Standard IS & IC series actuator are provided with below features.
• Two years standard warranty.
• IP66 for water ingress protection and corrosion resistance.
• Interchangeable modular construction – an advantage for inventory, service, maintenance
• Standard operating pressure: 40 to 100 PSIG (2.8 to 7 Bar)
• Standard operating temperature: -20oC to +80oC with high and low temperature optional trims available.
• Mounting dimension is to meet with ISO5211
